Description
Metal butterfly latches. Available in three standard internal configurations: empty, with foam and with pre-shaped foam. Self oiling free running wheels. Combination latch (optional).
Imperial Dimensions
| Internal Dimensions | |
|---|---|
| Length | 42 1/2 in |
| Width | 24 7/16 in |
| Depth | 10 1/4 in |
| Lid | 2 3/8 in |
| Base | 7 7/8 in |
| External Dimensions | |
|---|---|
| Length | 46 3/8 in |
| Width | 28 1/4 in |
| Depth | 11 5/16 in |
| Other Data | |
|---|---|
| Weight Empty | 37.47 lbs |
| Weight with Foam | 44.97 lbs |
| Weight with Custom Foam | 43.21 lbs |
| Volume | 45.96 gal |
| Buoyancy | 265.87 lbs/max |
| Operating temperature °F | min -27.4 / max +194 |
Metric Dimensions
| Internal Dimensions | |
|---|---|
| Length | 1080 mm |
| Width | 620 mm |
| Depth | 260 mm |
| Lid | 60 mm |
| Base | 200 mm |
| External Dimensions | |
|---|---|
| Length | 1178 mm |
| Width | 725 mm |
| Depth | 287 mm |
| Other Data | |
|---|---|
| Weight Empty | 17 Kg |
| Weight with Foam | 20.40 Kg |
| Weight with Custom Foam | 19.60 Kg |
| Volume | 174 lt |
| Buoyancy | 120.60 Kg/max |
| Operating temperature °C | min -33 / max +90 |
Internal Configuration

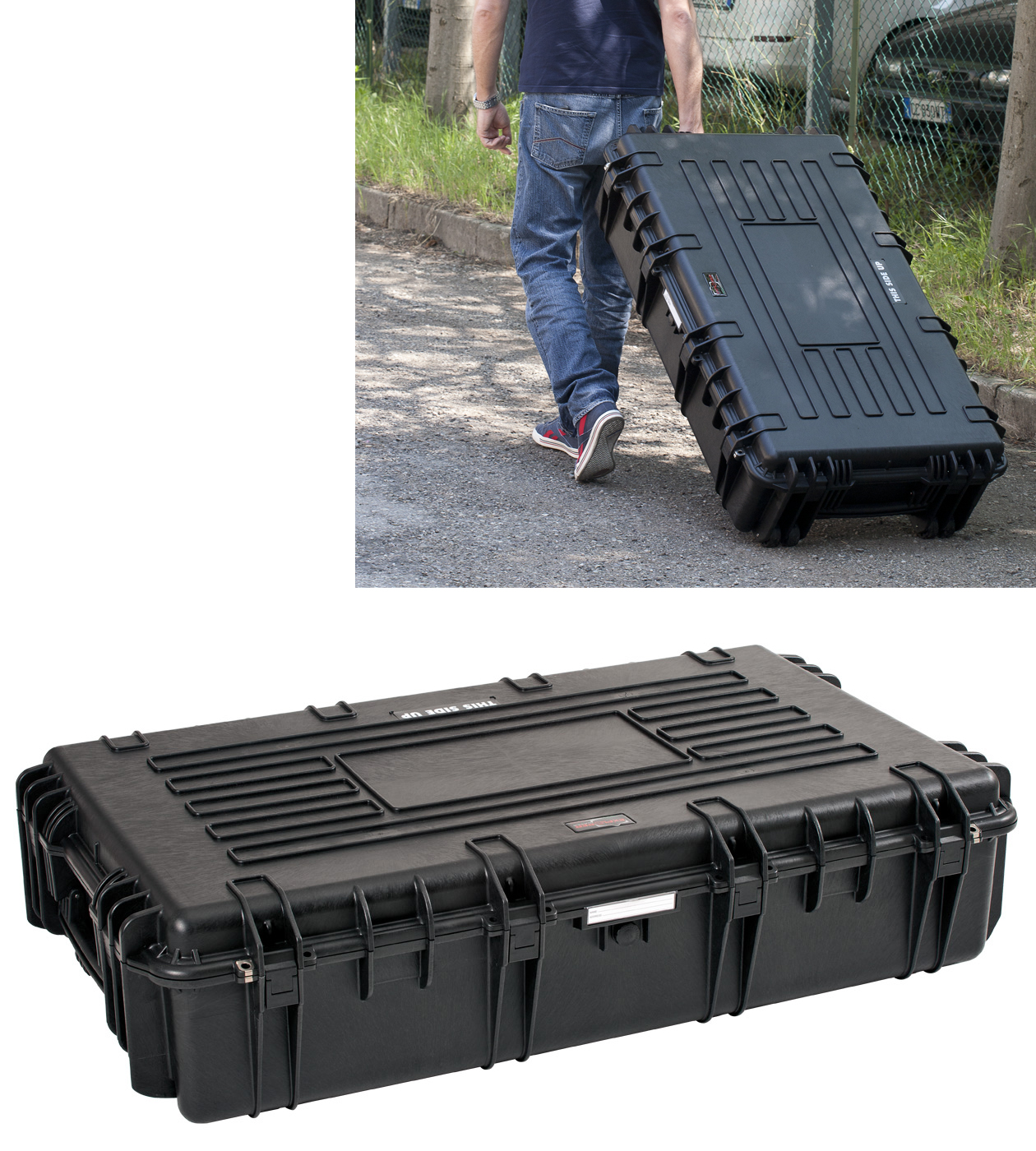

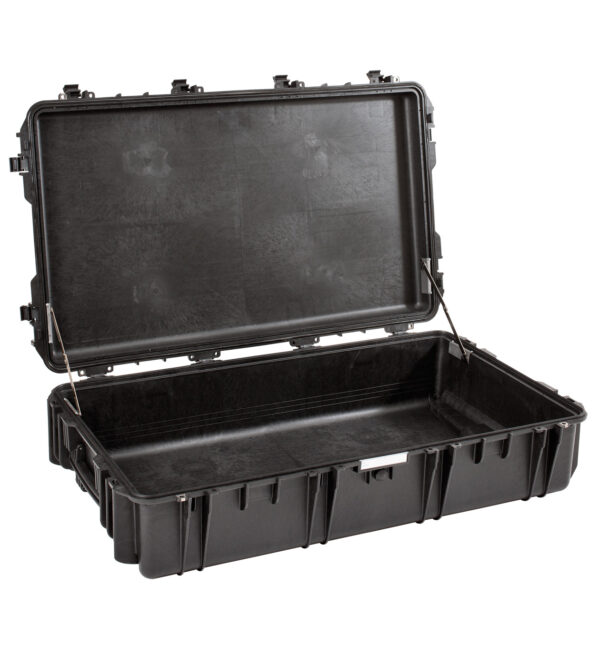

108 cm Long Case, Black Empty – Hinged Lid
